Two-axis testing turntable
- Commodity name： Two-axis testing turntable
Download:

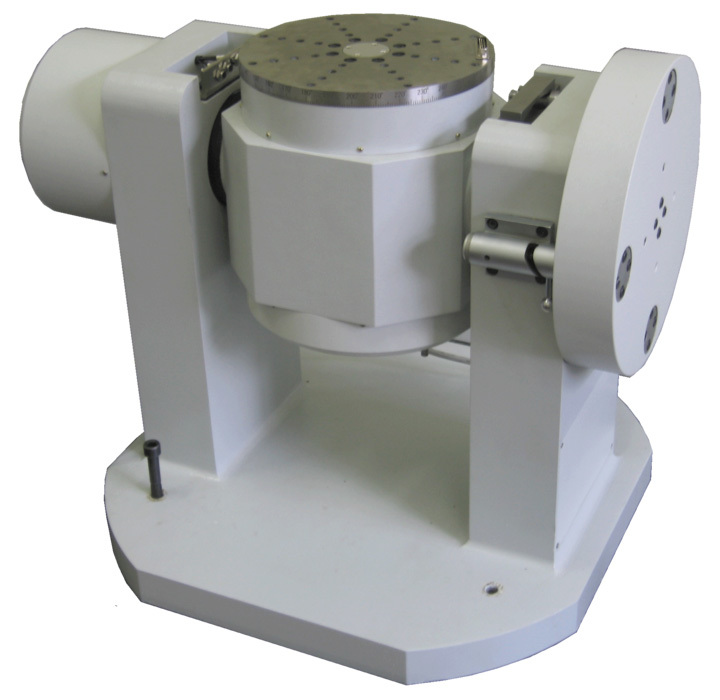

The JDZT240H two-axis testing turntable consists of two main parts: a mechanical platform and a measurement and control system. The platform adopts a U-T structure and a precision mechanical axis system, with position, speed, and low-frequency sine swing motion functions. It can provide accurate single axis and dual axis positioning and rate reference for the tested load, and is used for static testing and calibration of inertial components and inertial navigation systems.
Main technical indicators:
Table size: ¥ 300mm - ¥ 690mm;
Table surface flatness: 0.02mm;
Corner range: continuous;
Axis rotation accuracy: ± 5 ″;
Axis verticality: ± 5 inches;
Intersection: Within a small ball with a diameter of ≤ 0.2mm;
Angular position measurement resolution: 0.36 inches;
Angular position measurement accuracy: ± 3 ″;
Angle position control accuracy: ± 2 ";
Speed range: spindle 0.001 º/s to 500 º/s, pitch axis 0.001 º/s to 200 º/s;
Rate accuracy and rate stability:
1 × 10-3 (1 º average, ω ≤ 1 º/s);
1 × 10-4 (10 º average, 1 º/s < ω≤ 10 º/s);
1 × 10-5 (360 º average, ω>10 º/s);
Swing amplitude: spindle ± 50 º, pitch axis ± 45 º;
Maximum acceleration: spindle 300 º/s2, pitch axis 200 º/s2;
Swing cycle: 1sec to 50sec;
Usage environment: Temperature: 20 ℃± 8 ℃;
Relative humidity: ≤ 70%;
Platform grounding resistance: ≤ 2 Ω;
Working power supply: 220VAC ± 10%/50Hz
